Commercial Utility Vehicles
700kg Electric Waste Collection Tricycle
Designed for internal sanitation transport in ports, logistics hubs, and industrial parks, this electric waste collection tricycle provides a compact yet high-capacity solution for daily waste handling in restricted-access areas. With a 700 kg load capacity and hydraulic self-unloading system, the vehicle supports high-frequency stop-and-go operation across dockside service lanes, warehouse perimeters, and container yard corridors. The sealed cargo structure prevents leakage and secondary contamination, while the electric drivetrain ensures low-noise operation in environmentally sensitive working zones. Engineered for fleet deployment, the vehicle combines durability, corrosion resistance, and predictable maintenance performance for long-term internal logistics support.
700kg Electric Waste Collection Tricycle
Compact Sanitation Vehicle for Industrial & Municipal Operations
1. Application Scenarios
Designed for Daily Waste Collection & Sanitation Operations
This vehicle is purpose-built for high-frequency waste collection tasks in environments where maneuverability, containment, and efficiency are critical.
Suitable for:
- Industrial park waste collection
- Port & dockside sanitation operations
- Warehouse & logistics center cleaning routes
- Municipal community waste transport
- Facility maintenance & internal cleaning teams
Optimized for:
- Narrow service roads
- Repetitive short-distance collection cycles
- Environments requiring sealed transport

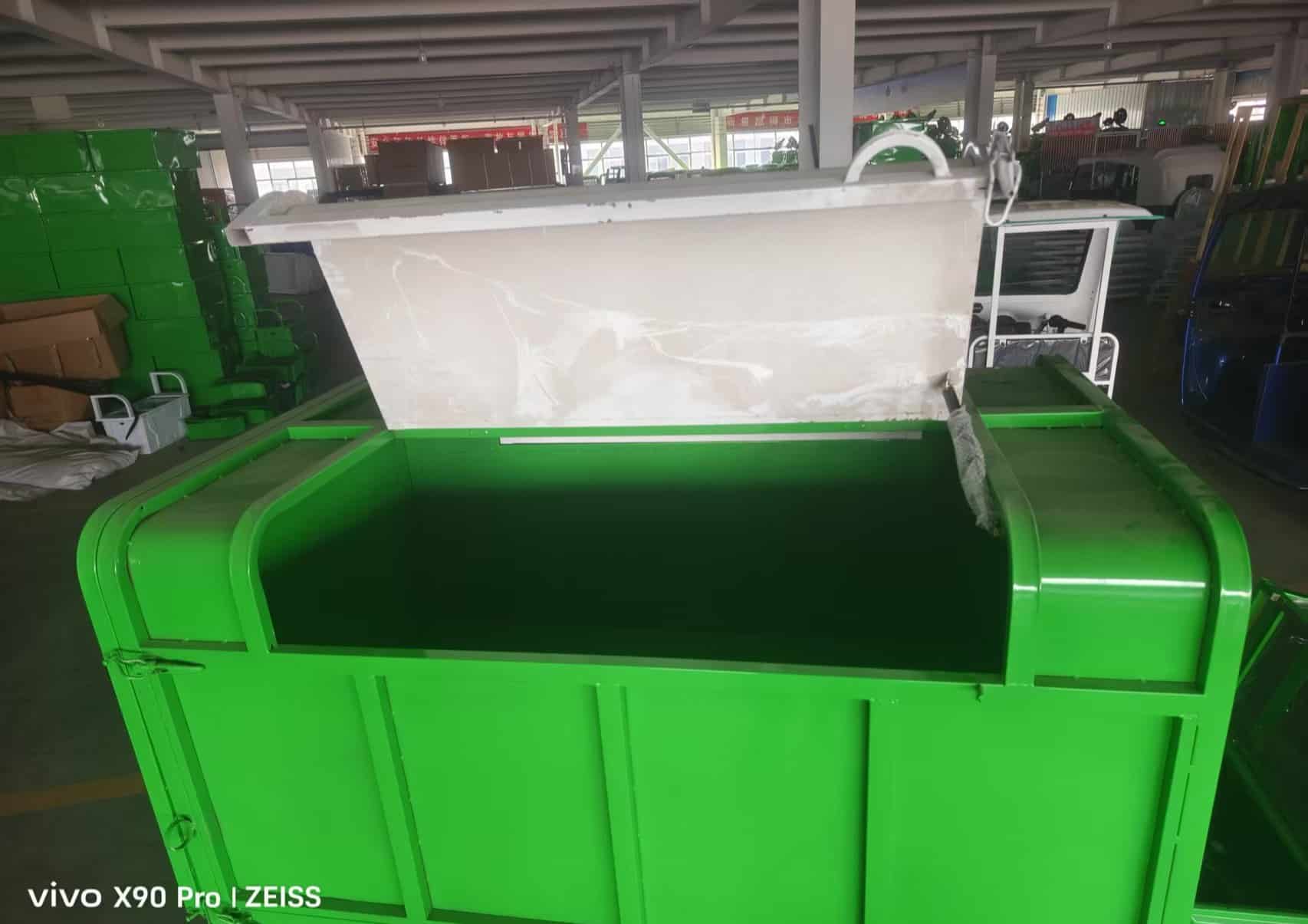

2. Sealed Waste Containment System
Clean Transport Without Leakage Risks
Fully enclosed cargo structure designed to control contamination during transport:
- Sealed cargo container prevents liquid leakage
- Dust-proof structure reduces airborne pollution
- Suitable for wet waste and mixed refuse
- Improves hygiene standards in industrial environments
Result:
- Cleaner operation
- Reduced secondary pollution
- Compliance with internal sanitation standards
3. Hydraulic Self-Unloading System
Faster Cycles, Lower Labor Intensity
Equipped with a high-power hydraulic dumping system:
- One-touch hydraulic unloading
- Fast discharge without manual handling
- Minimal residue after dumping
- Reduces operator fatigue
Result:
- Higher daily collection efficiency
- Lower labor dependency
- Faster turnaround per cycle
4. Compact Structure for Narrow Environments
Built for Access Where Trucks Cannot Reach
- Compact body design for tight working areas
- Easy navigation in:
- Service alleys
- Dockside lanes
- Warehouse corridors
Compared to larger sanitation trucks:
- Lower operational restriction
- Higher accessibility
- Better route coverage in confined spaces
5. Corrosion-Resistant Industrial Body
Designed for Harsh Waste Handling Environments
- Phosphating treatment + anti-corrosion coating
- Resistant to:
- Moisture
- Waste liquids
- Chemical exposure
Benefits:
- Extended service life
- Reduced structural degradation
- Stable performance under daily sanitation use
6. Stable Powertrain for Load Consistency
Reliable Performance Under 700kg Load
- 60V / 72V 2000W PMSM motor
- Stable torque output under full load
- Smooth driving on ramps and uneven surfaces
- Suitable for continuous stop-start operations
Designed for:
- Repetitive short-haul sanitation routes
- Full-load operation without performance drop
7. Technical Specifications
Item | Specification |
Overall Size (mm) | 3090 × 1080 × 1330 |
Cargo Box Size (mm) | 1500 × 1000 × 750 |
Load Capacity | 700 kg |
Motor | 60V / 72V 2000W PMSM |
Battery | 72V58Ah |
Range | 50–55 km |
Max Speed | 40 km/h |
Charging Time | 6–8 h |
Vehicle Weight (no battery) | 270 kg |
Dumping System | Hydraulic |
8. Why This Vehicle Exists (Optional but recommended)
Not Just Transport — A Dedicated Sanitation Tool
Standard cargo vehicles are often used for waste transport — but they introduce problems:
❌ Leakage and contamination
❌ Manual unloading inefficiency
❌ Corrosion damage over time
❌ Poor suitability for narrow routes
This model is designed to eliminate those issues through:
- Sealed structure
- Integrated hydraulic dumping
- Corrosion-resistant body
- Compact maneuverability
CTA
Build a More Efficient Sanitation Workflow
Whether for industrial parks, ports, or municipal projects —
this vehicle helps standardize and simplify your waste collection operations.
Request Configuration Advice
Get Project-Based Quotation
