Commercial Utility Vehicles
1.7M High-Frequency Electric Cargo Tricycle | Heavy-Duty Environmental Internal Transport Vehicle
The L-HT is an environment-adapted electric cargo tricycle engineered for high-temperature, high-frequency, and multi-shift internal logistics operations. Designed for thermal stability, dust resistance, and long-hour uptime, it ensures consistent output in harsh outdoor environments such as ports, industrial sites, and hot-climate regions.

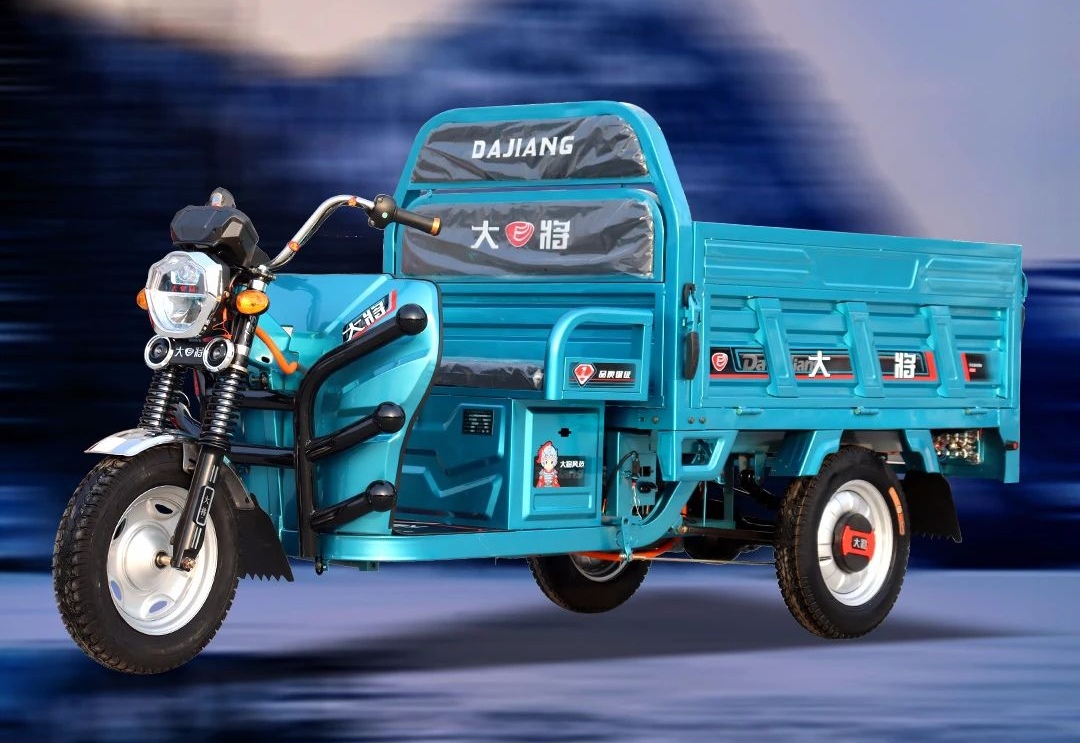

1.7M High-Frequency Electric Cargo Tricycle
Built for Heat, Dust, and Continuous Operation
This reinforced electric cargo tricycle is designed for high-frequency outdoor operations in demanding environments.
With a 700kg payload capacity and upgraded power system, it delivers stable performance under heat, dust, and continuous-duty cycles.
A reliable solution for operations where vehicles are expected to run longer, harder, and more consistently.
1. Application Scenarios
Designed for Continuous Outdoor Operations
Suitable for:
- Outdoor logistics yards
- Industrial sites
- Port-side transport
- Construction environments
- Multi-shift operations
Typical environments:
- High-temperature regions (Middle East, Africa)
- Dusty or semi-industrial areas
- Long working-hour operations
2. Cargo Platform & Load Capacity
Built for Repetitive Transport Tasks
- Cargo Box: 1700 × 1200 mm
- Rated Load: 700 kg
- Suitable for mixed industrial cargo
Designed for:
- Continuous shuttle operations
- Repetitive loading cycles
- Stable transport under daily stress
Designed for:
- Multi-shift operations
- Continuous transport cycles
- High-frequency daily usage
3. High-Stability Power System
Engineered for Continuous Output
- Motor: 1500W Permanent Magnet Motor
- Controller: 24-tube industrial controller
Key advantages:
- Stable power output under long working hours
- Reduced overheating risk
- Consistent torque delivery across shifts
4. Reinforced Drivetrain System
Built for High-Frequency Operation
- Rear Axle: 180 integrated full-floating axle with gear shift
- Heavy-duty drivetrain configuration
Benefits:
- Improved load distribution
- Reduced component fatigue
- Longer service life under repetitive use
5. Environmental Durability
Designed for Harsh Conditions
- Full-body electrophoresis coating (automotive-grade)
- Enhanced corrosion resistance
- Suitable for humid and coastal environments
Protection features:
- Reduced dust ingress risk
- Improved structural durability
- Lower long-term maintenance impact
6. Road & Terrain Adaptability
Stable Across Industrial Surfaces
- Tires:
- Front: 4.0-12
- Rear: 4.5-12 heavy-duty tires
- Improved traction on:
- Dusty roads
- Gravel surfaces
- Industrial ground conditions
- Technical Specifications
Item | Specification |
Overall Size | 3260 × 1280 × 1415 mm |
Cargo Box | 1700 × 1200 mm |
Load Capacity | 700 kg |
Motor | 1500W PMSM |
Controller | 24-tube |
Rear Axle | 180 full-floating |
Tires | Front 4.0-12 / Rear 4.5-12 |
Weight(without battery) | 255kg |
Driving Mileage | 65-70km |
Charging time | 6-9h |
Max speed(km/h) | 40 |
Battery | Lead-acid batteries |
Battery wight | 72A58AH |
Optional battery | Lithium battery |
Front Brake system | 130drum brake |
Rear shock system | 180drum brake |
shock absorption | φ43 External spring shock absorption |
Frame | Double-layer double-beam split frame |
Cargo Box size(mm) | 1.7m*1.2m |
Ground clearance | 220 |
Turning radius | 45* |
Wheelbase | 2160 |
Rear track (mm) | 1080 |
Front tire size | 400-12Heavy-duty tires |
Rear tire size | 450-12Heavy-duty tires |
Loading quantity（SKD）(40HQ) | 28 PCS |
Loading quantity(CKD)(40HQ) | 50 PCS |
Delivery time | 25-33 Days |
CTA
When Your Operation Runs All Day, Your Vehicle Must Keep Up
If your working environment involves heat, dust, and continuous use,
this configuration is designed to maintain stable performance over time.
�� Request Configuration Advice
